Barcelona 900 Concrete Roof Tile Review: Florida Colors, Specs and NOA Data

Barcelona 900 is a high-profile, interlocking, one-piece S-shaped concrete roof tile. Miami-Dade NOA 24-1008.13 lists it as a TAS 112 Type 1a tile manufactured in Lake Wales, Florida.

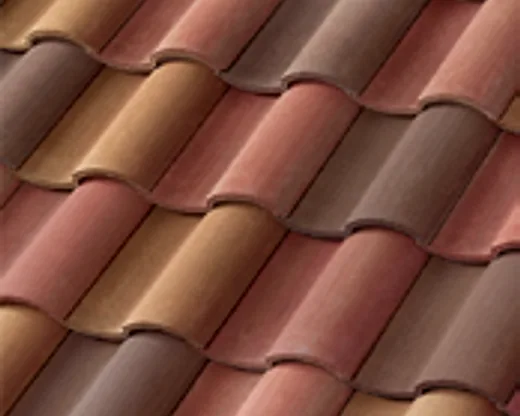

The current NOA lists nominal dimensions of 17 × 13 × 1/2 inches and an average calculation weight of 11.5 lbf per field tile. Westlake's selected Avalon Beach Blend product sheet lists about 85 tiles and approximately 950 pounds installed per roofing square; project quantities still need waste, trim, and roof-geometry allowances.

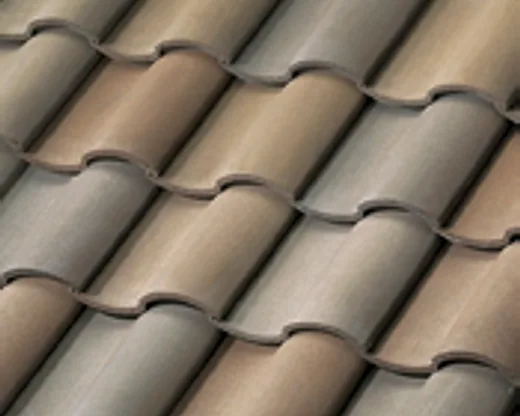

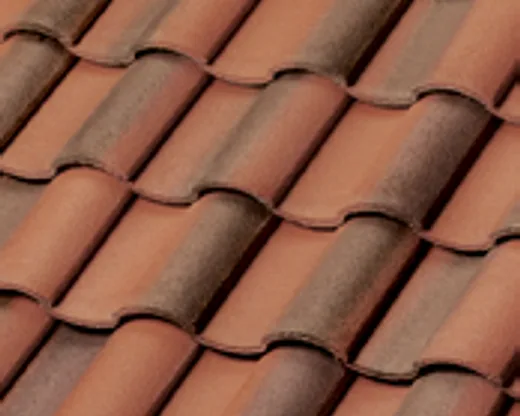

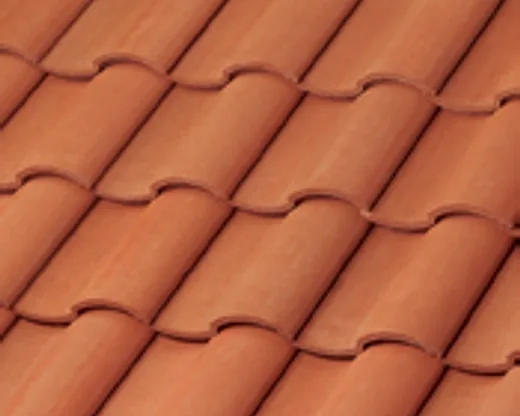

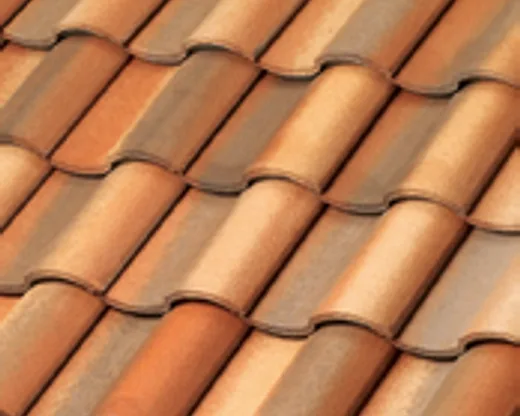

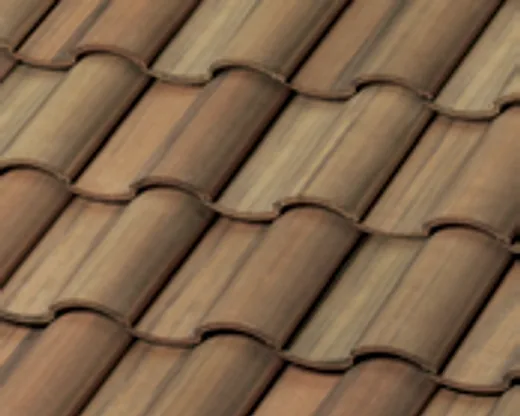

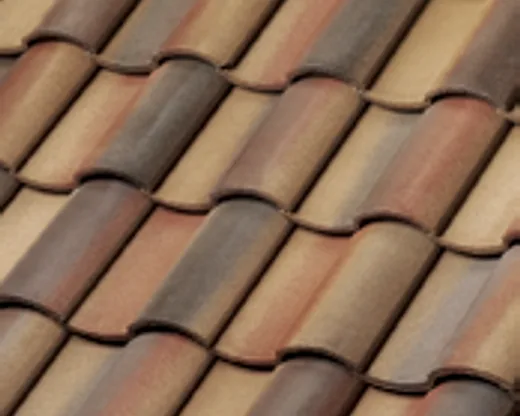

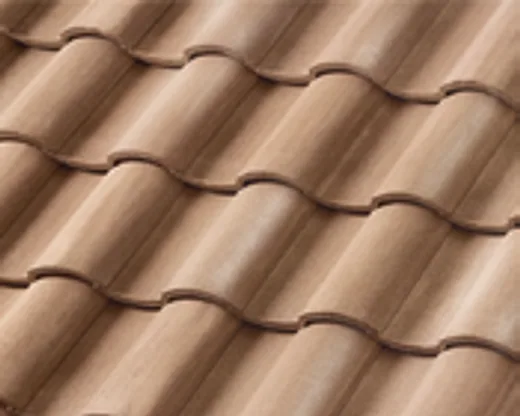

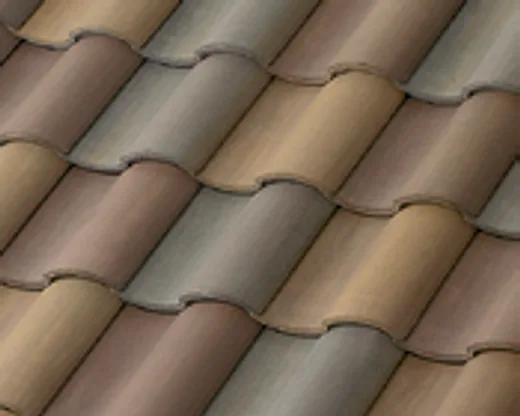

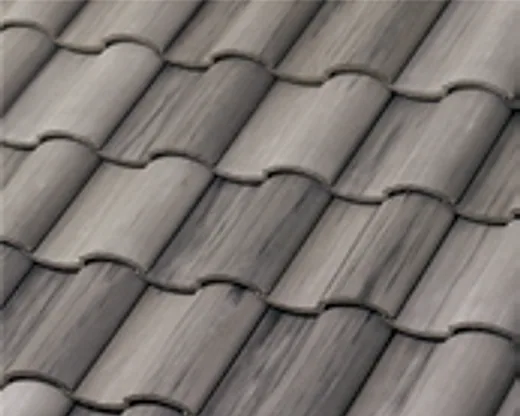

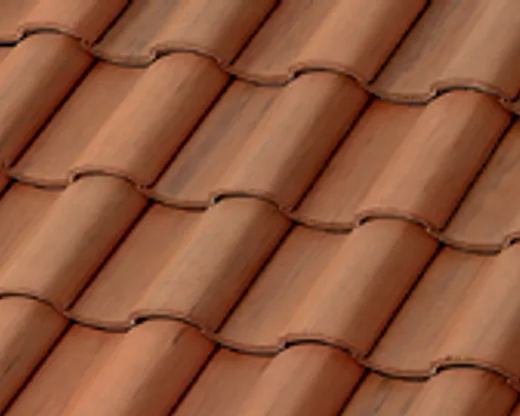

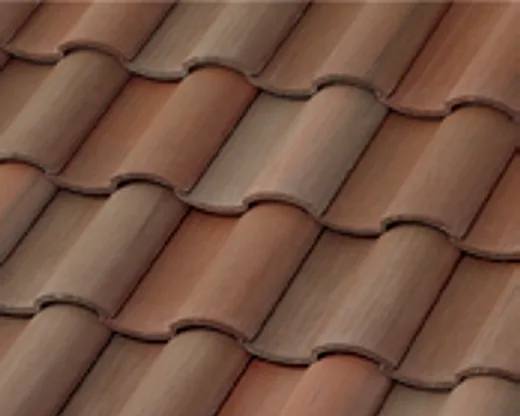

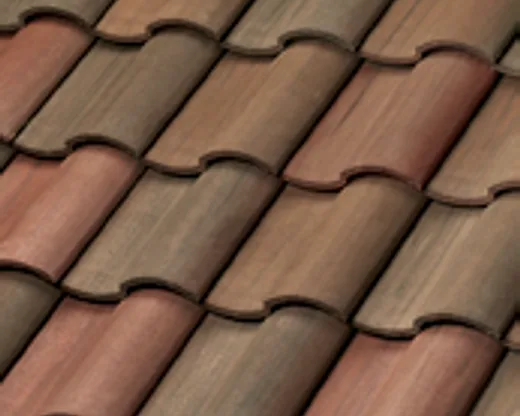

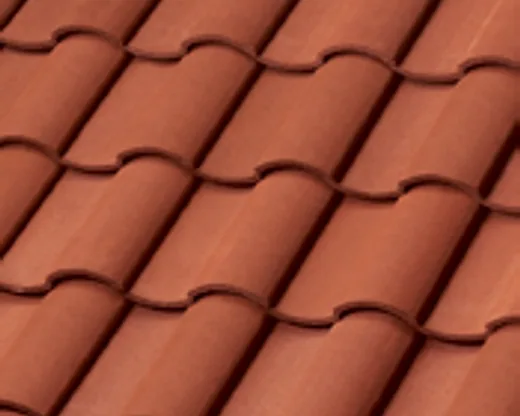

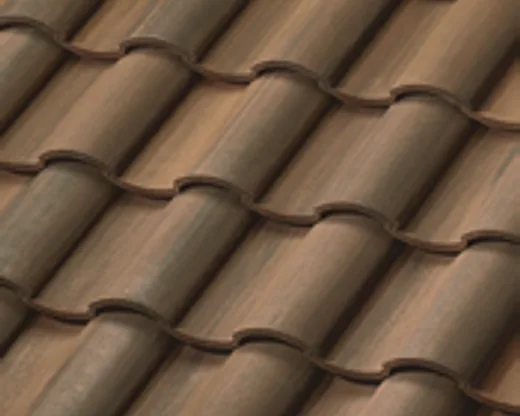

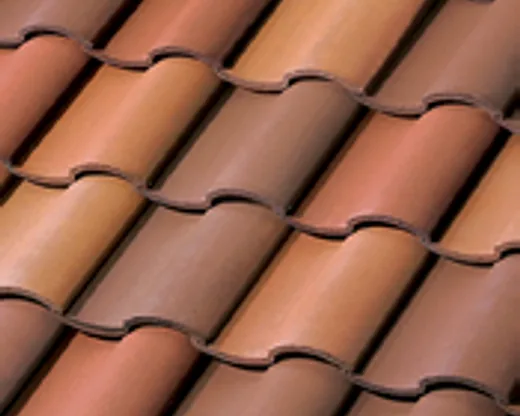

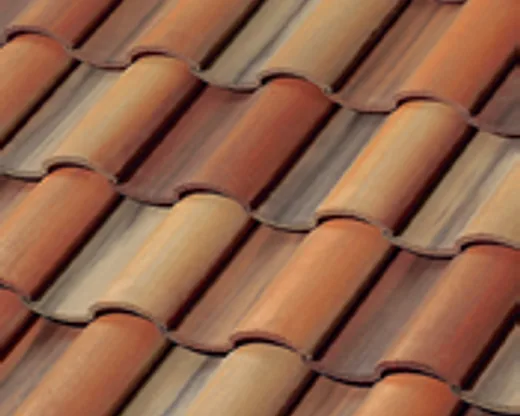

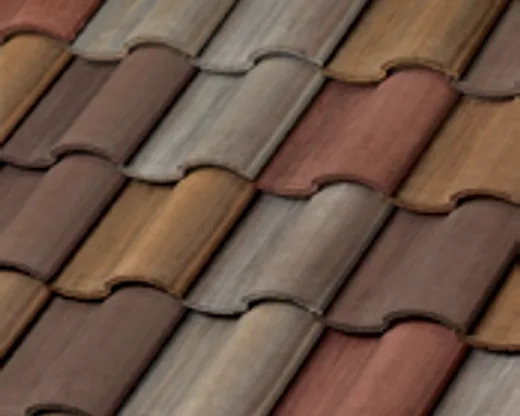

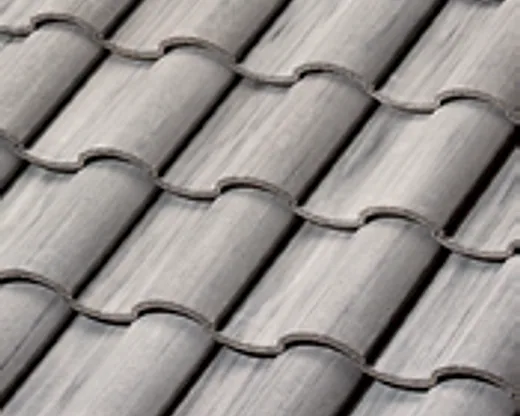

Westlake's Florida selector showed 23 Barcelona 900 color options when reviewed on August 28, 2026, including four marked premium. Color displays, regional inventory, lead times, and current availability can change, so choose from a current physical sample and confirm the exact plant and SKU before ordering.

Westlake describes Barcelona 900 as Class A Fire Rated. The Miami-Dade tile NOA separately states that fire classification is outside that approval's scope, so the complete permitted roof assembly and its current fire classification still need verification.

No roof tile is hurricane-proof. Barcelona 900 is covered by Miami-Dade NOA 24-1008.13 under listed assemblies and conditions, but the required attachment depends on project-specific RAS 127 calculations, roof zones, geometry, deck, underlayment, and design pressures.

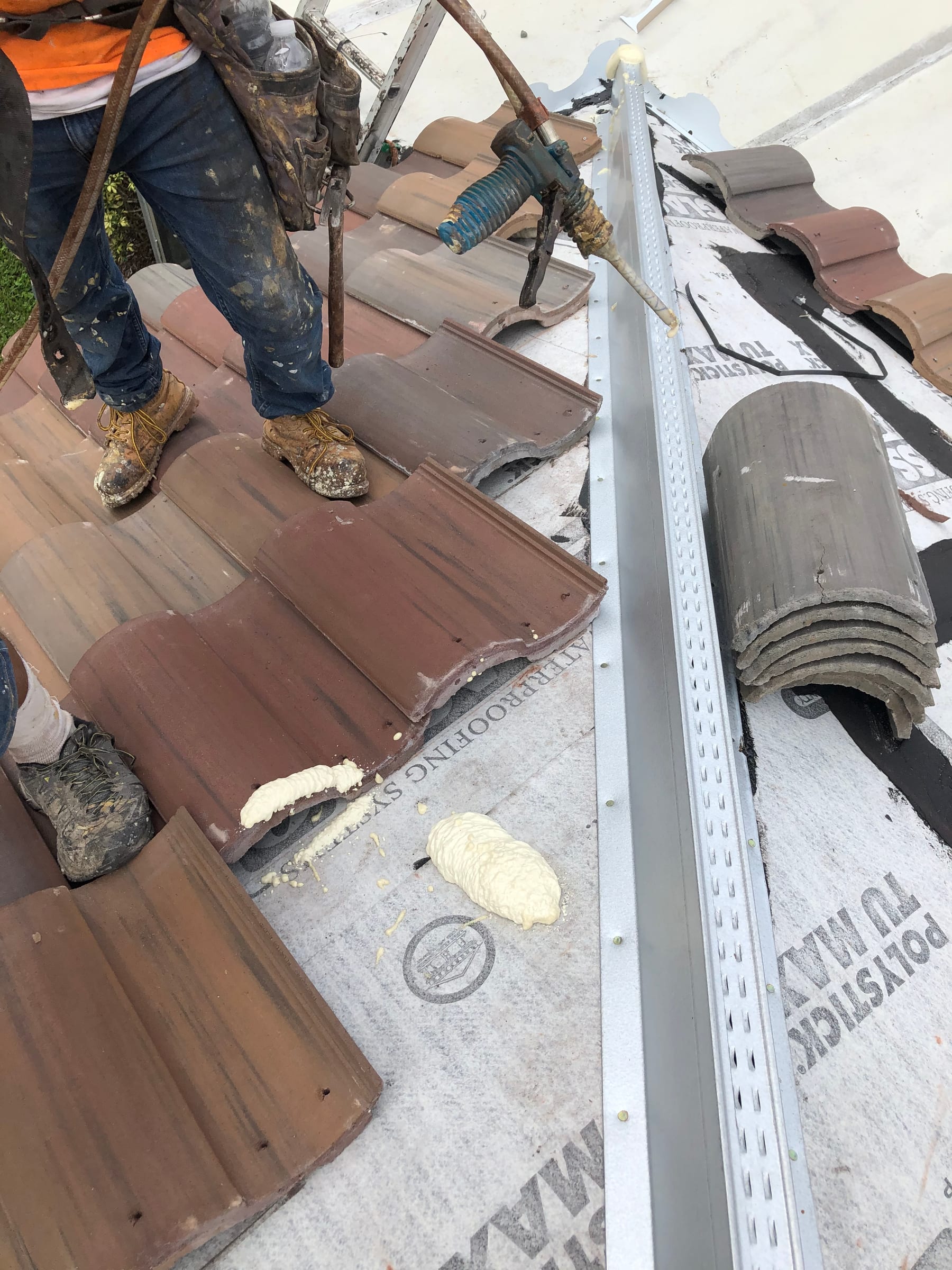

Yes. The current NOA includes direct-deck and battened mechanical attachment, adhesive-set systems, mortar, and a listed hybrid configuration. The permitted method and exact pattern must match the current product and component approvals for the project.

Not automatically. The NOA lists 43.2 ft-lbf for two #8 screws on the direct-deck categories. Listed AH-160 configurations range from 29 ft-lbf for two 8 g patties to 67 ft-lbf for one 63 g paddy. Those are assembly-specific moments, not universal product strength or wind speed.

NOA 24-1008.13 states a 4:12 minimum for mechanically attached Barcelona 900 tile. That sentence should not be generalized to every adhesive- or mortar-set assembly; the permitted details and current code control each project.

No. The current Miami-Dade acceptance is limited to wood-deck applications and lists specific direct-deck and batten calculation categories. Other decks or assemblies require separately applicable approvals and design review.

Barcelona 900 has a high S-shaped barrel. Villa 900 is a lower double-roll profile, while Saxony 900 is a flatter slate- and shake-look family. They may share a nominal 17 × 13-inch footprint, but their weights, nail holes, plants, variants, and attachment values are not interchangeable.

Westlake's current warranty is a non-prorated, fully transferable limited lifetime product warranty, subject to its terms. It covers specified manufacturing defects, not installation labor, and calls for online registration within 90 days; without registration, the stated duration becomes two years from original installation. Review the current exclusions and claim requirements for the exact product and project.
